Automobile Control Arm: The "mechanical Bridge" of The Suspension System

Automobile control arm: the "mechanical bridge" of the suspension system

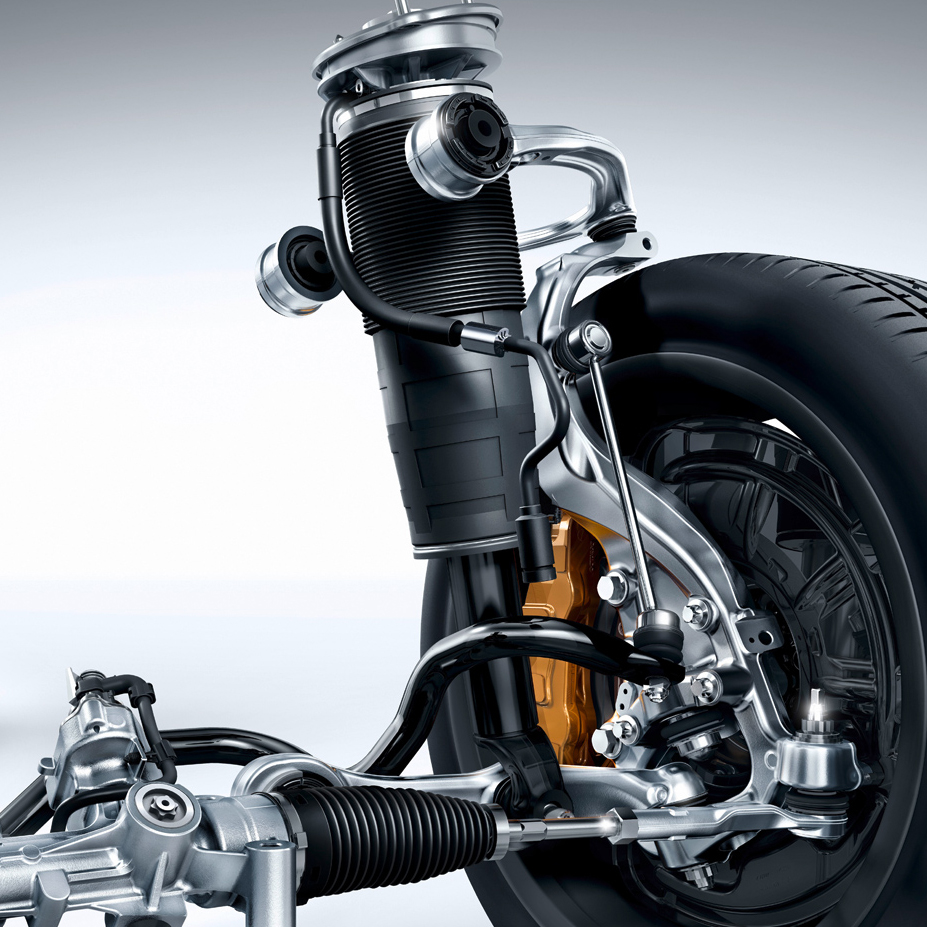

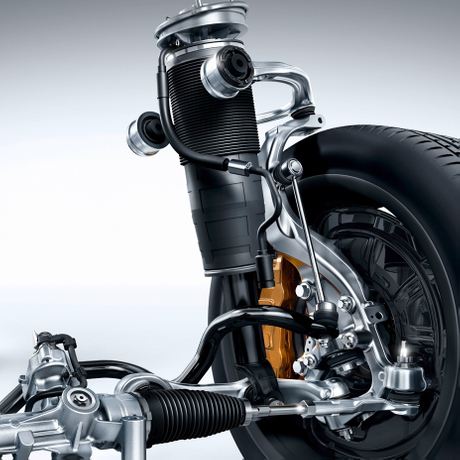

The automobile control arm (swing arm) is the core component connecting the wheel knuckle and the body subframe. Although it looks unremarkable, it is the "bridge" for the suspension system to transmit force and movement.

When the vehicle is driving, the longitudinal braking force, lateral force and vertical impact force generated by the tire and the ground must be transmitted to the body structure through the control arm to ensure the stable connection between the wheel and the body. If the control arm fails, the wheel will lose its restraint, directly leading to serious accidents such as loss of control or wheel slippage.

Its shape and installation angle determine the positioning parameters of the wheel (camber angle, toe angle, etc.). A slight deviation (±0.1°) will affect the tire contact area and steering response - camber misalignment can easily cause eccentric wear, and toe angle error will increase driving resistance.

As the basic component of the suspension system, the control arm supports the vehicle's handling stability and driving safety with the most direct mechanical logic, and is the "invisible safety cornerstone."
